Plot means by sub-groups

Source: R/plot_means.R
plot_means.Rd

Plot one or several means by sub-groups. See mean_sd() for more details on the way means and confidence intervals are computed. By default, return a point plot, but other geometries could be used (see examples).

Usage

plot_means(
  data,
  outcome,
  by = NULL,
  drop_na_by = FALSE,
  convert_continuous = TRUE,
  geom = "point",
  ...,
  show_overall = TRUE,
  overall_label = "Overall",
  show_ci = TRUE,
  conf_level = 0.95,
  ci_color = "black",
  show_pvalues = TRUE,
  pvalues_labeller = scales::label_pvalue(add_p = TRUE),
  pvalues_size = 3.5,
  show_labels = TRUE,
  label_y = NULL,
  labels_labeller = scales::label_number(0.1),
  labels_size = 3.5,
  labels_color = "black",
  show_overall_line = FALSE,
  overall_line_type = "dashed",
  overall_line_color = "black",
  overall_line_width = 0.5,
  facet_labeller = ggplot2::label_wrap_gen(width = 50, multi_line = TRUE),
  flip = FALSE,
  minimal = FALSE,
  free_scale = FALSE,
  return_data = FALSE
)

Arguments

data

A data frame, data frame extension (e.g. a tibble), or a survey design object.

outcome

<tidy-select> List of continuous variables to be plotted.

by

<tidy-select> List of variables to group by (comparison is done separately for each variable).

drop_na_by

Remove NA values in by variables?

convert_continuous

Should continuous by variables (with 5 unique values or more) be converted to quartiles (using cut_quartiles())?

geom

Geometry to use for plotting means ("point" by default).

...

Additional arguments passed to the geom defined by geom.

show_overall

Display "Overall" column?

overall_label

Label for the overall column.

show_ci

Display confidence intervals?

conf_level

Confidence level for the confidence intervals.

ci_color

Color of the error bars representing confidence intervals.

show_pvalues

Display p-values in the top-left corner? p-values are computed with stats::oneway.test() for data frames, and with survey::svyttest() (2 groups) or svyoneway() (3 groups or more) for survey objects.

pvalues_labeller

Labeller function for p-values.

pvalues_size

Text size for p-values.

show_labels

Display mean labels?

label_y

Y position of labels. If NULL, will be auto-determined.

labels_labeller

Labeller function for labels.

labels_size

Size of labels.

labels_color

Color of labels.

show_overall_line

Add an overall line?

overall_line_type

Line type of the overall line.

overall_line_color

Color of the overall line.

overall_line_width

Line width of the overall line.

facet_labeller

Labeller function for strip labels.

flip

Flip x and y axis?

minimal

Should a minimal theme be applied? (no y-axis, no grid)

free_scale

Allow y axis to vary between conditions?

return_data

Return computed data instead of the plot?

Examples

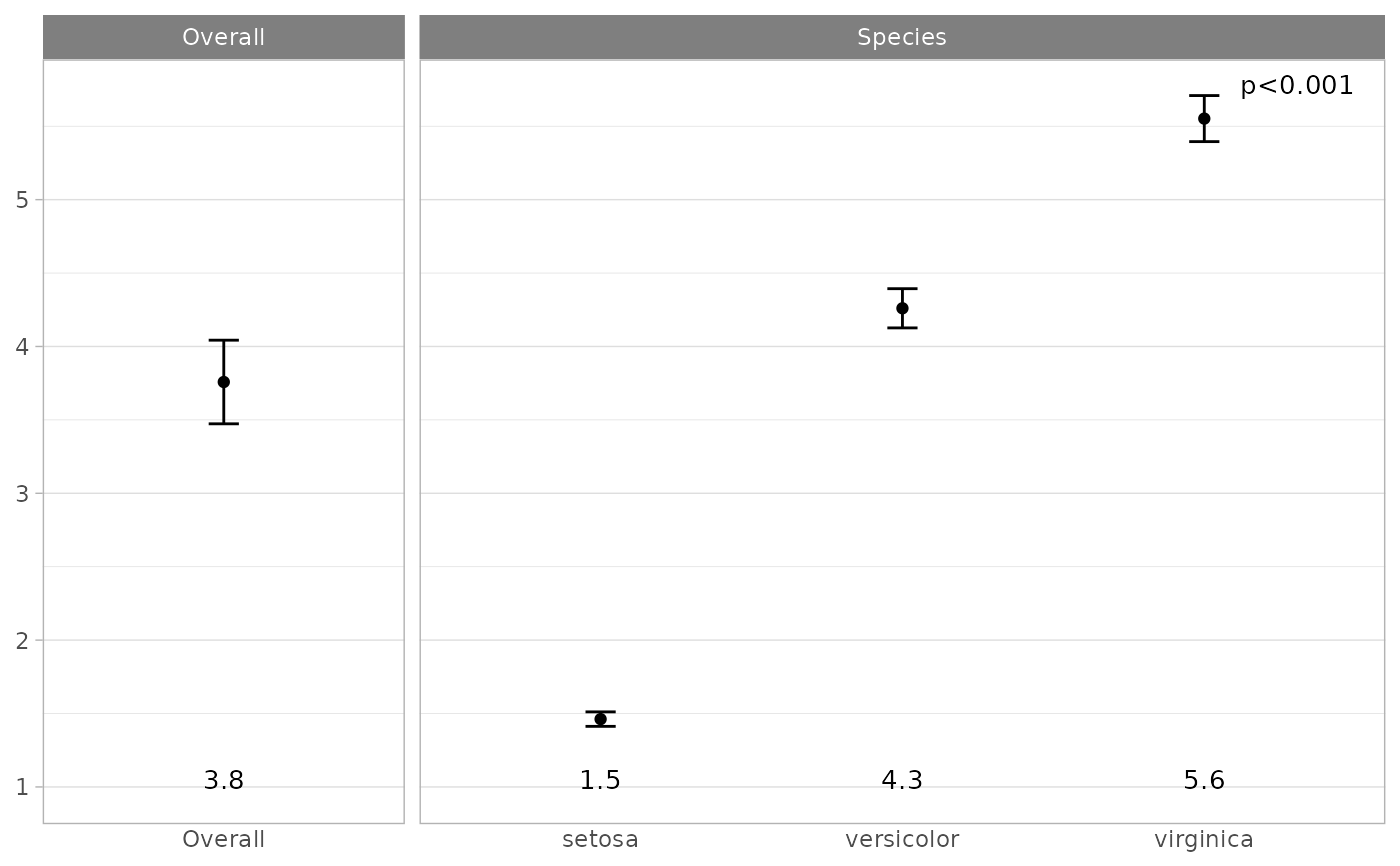

iris |>
  plot_means(Petal.Length, by = Species)

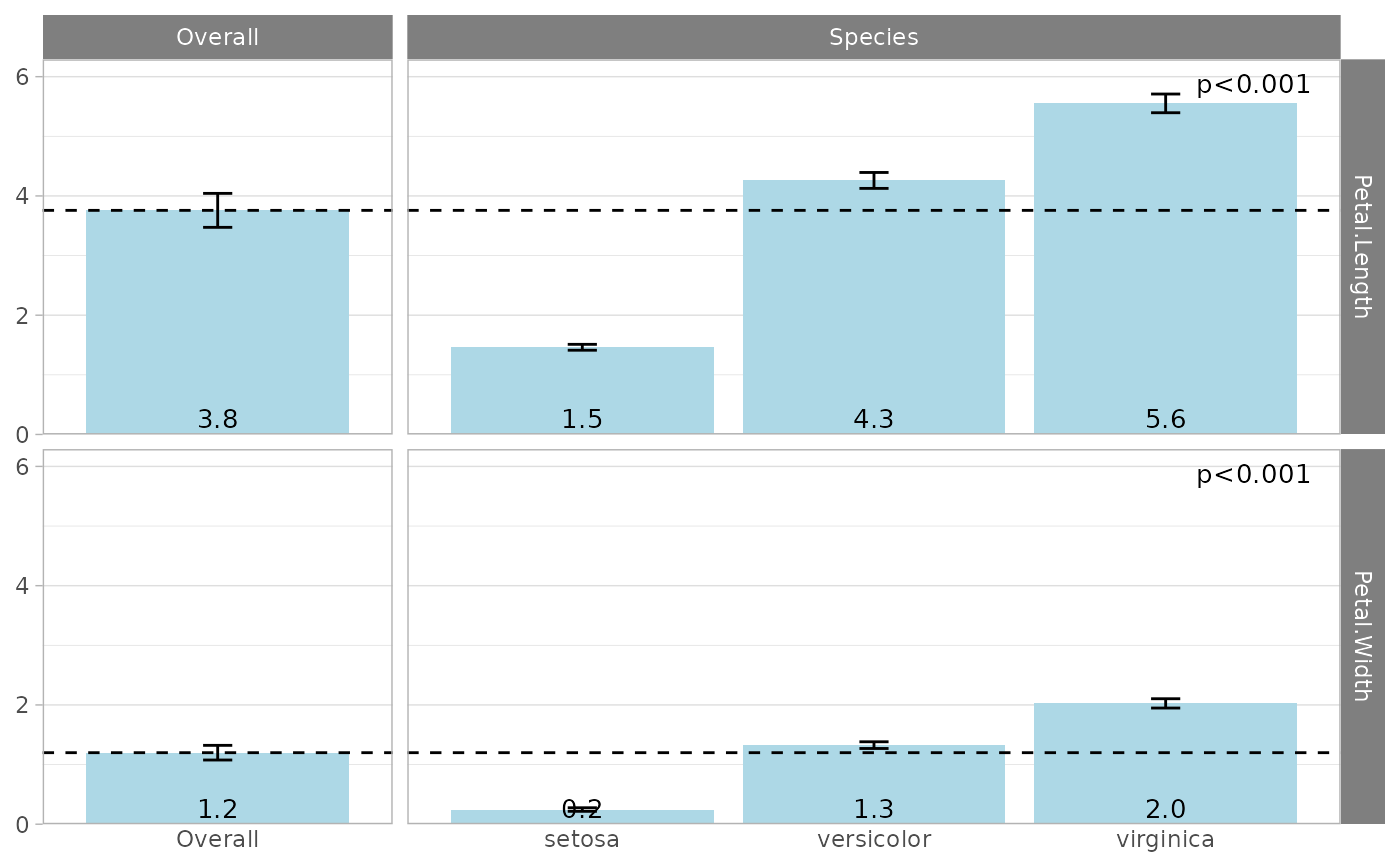

iris |>
  plot_means(
    dplyr::starts_with("Petal"),
    by = Species,
    geom = "bar",
    fill = "lightblue",
    show_overall_line = TRUE
  )


# \donttest{

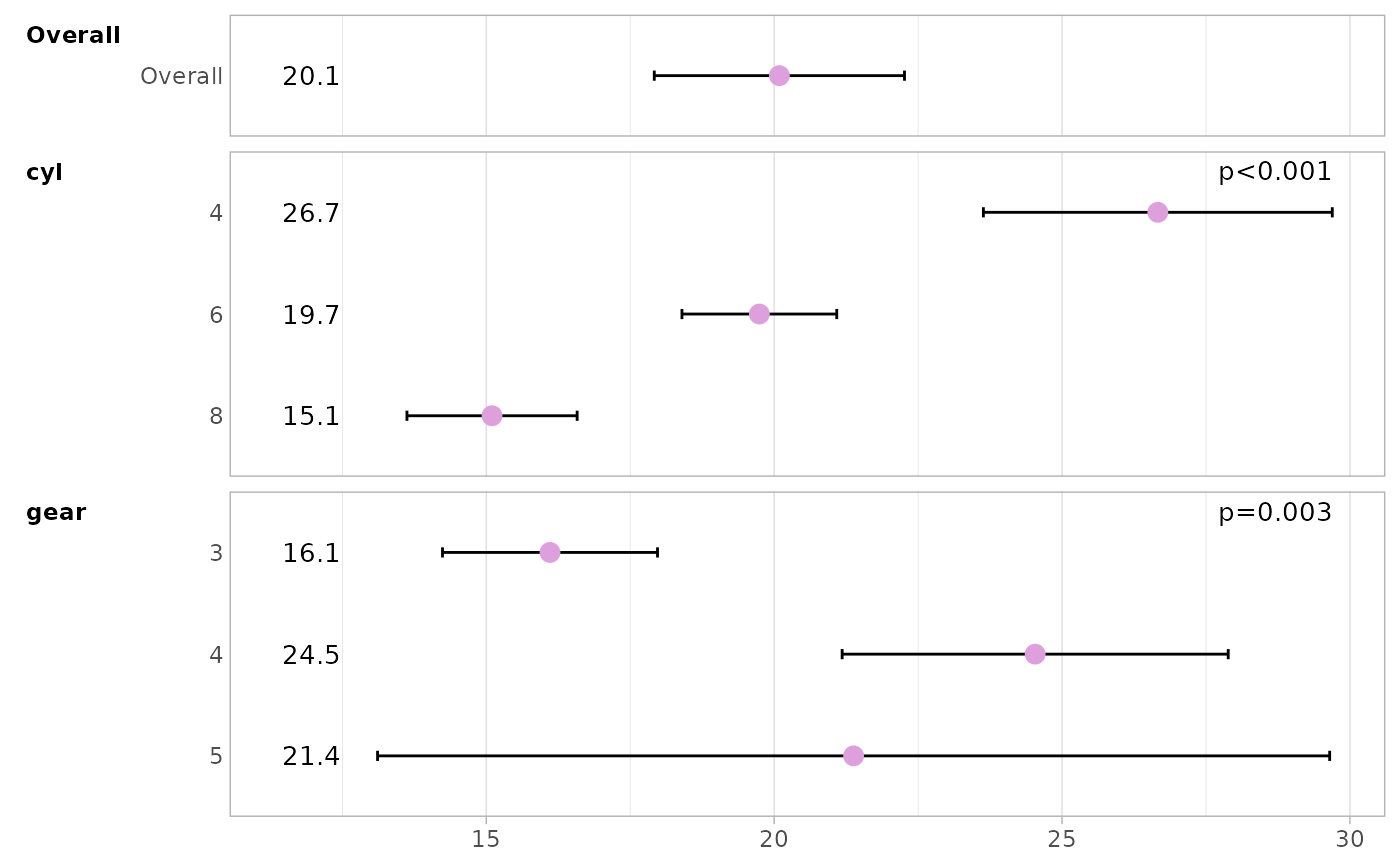

mtcars |>
  plot_means(
    mpg,
    by = c(cyl, gear),
    size = 3,
    colour = "plum",
    flip = TRUE
  )

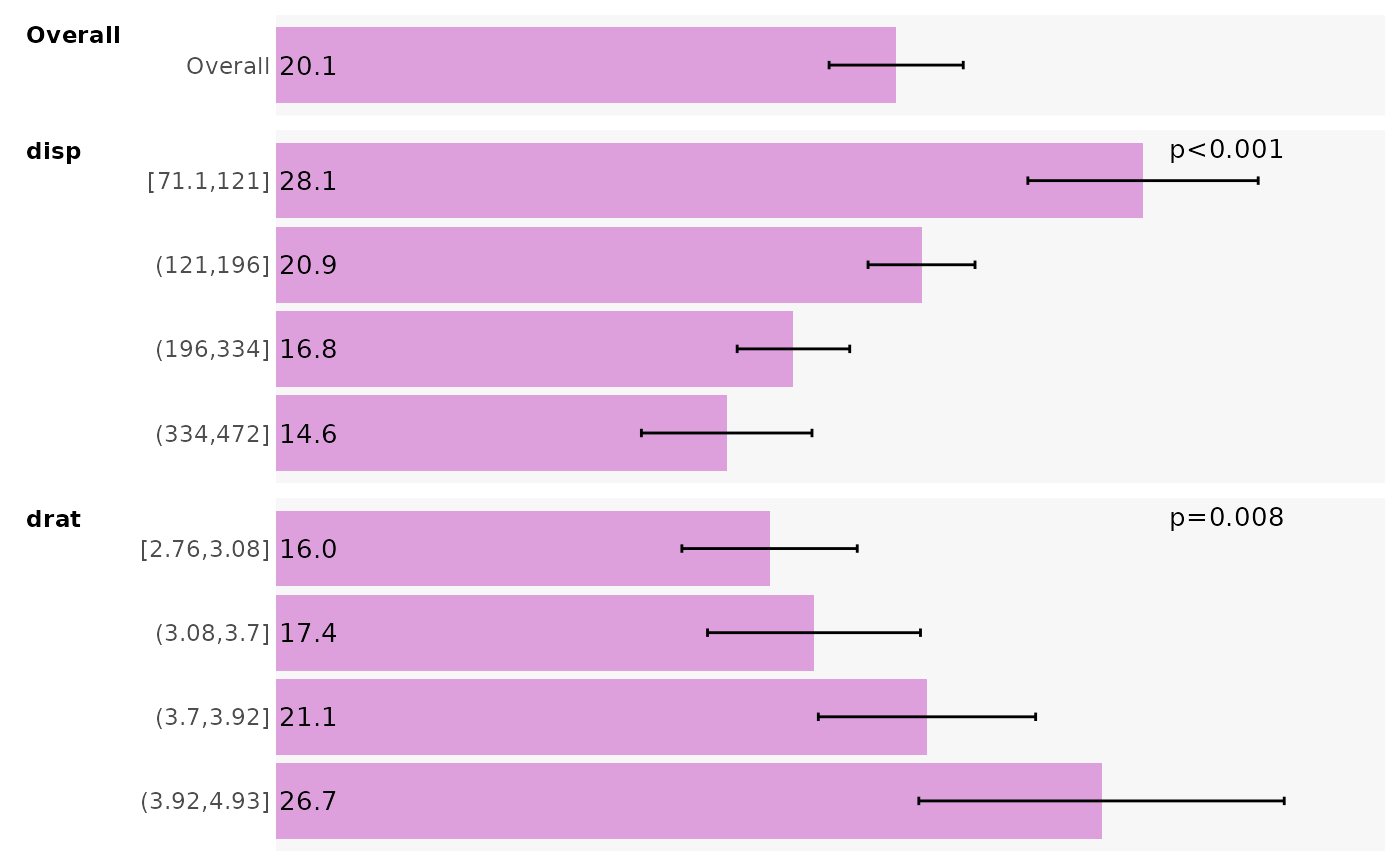

# works with continuous by variables
mtcars |>
  plot_means(
    mpg,
    by = c(disp, drat),
    fill = "plum",
    geom = "bar",
    flip = TRUE,
    minimal = TRUE
  )

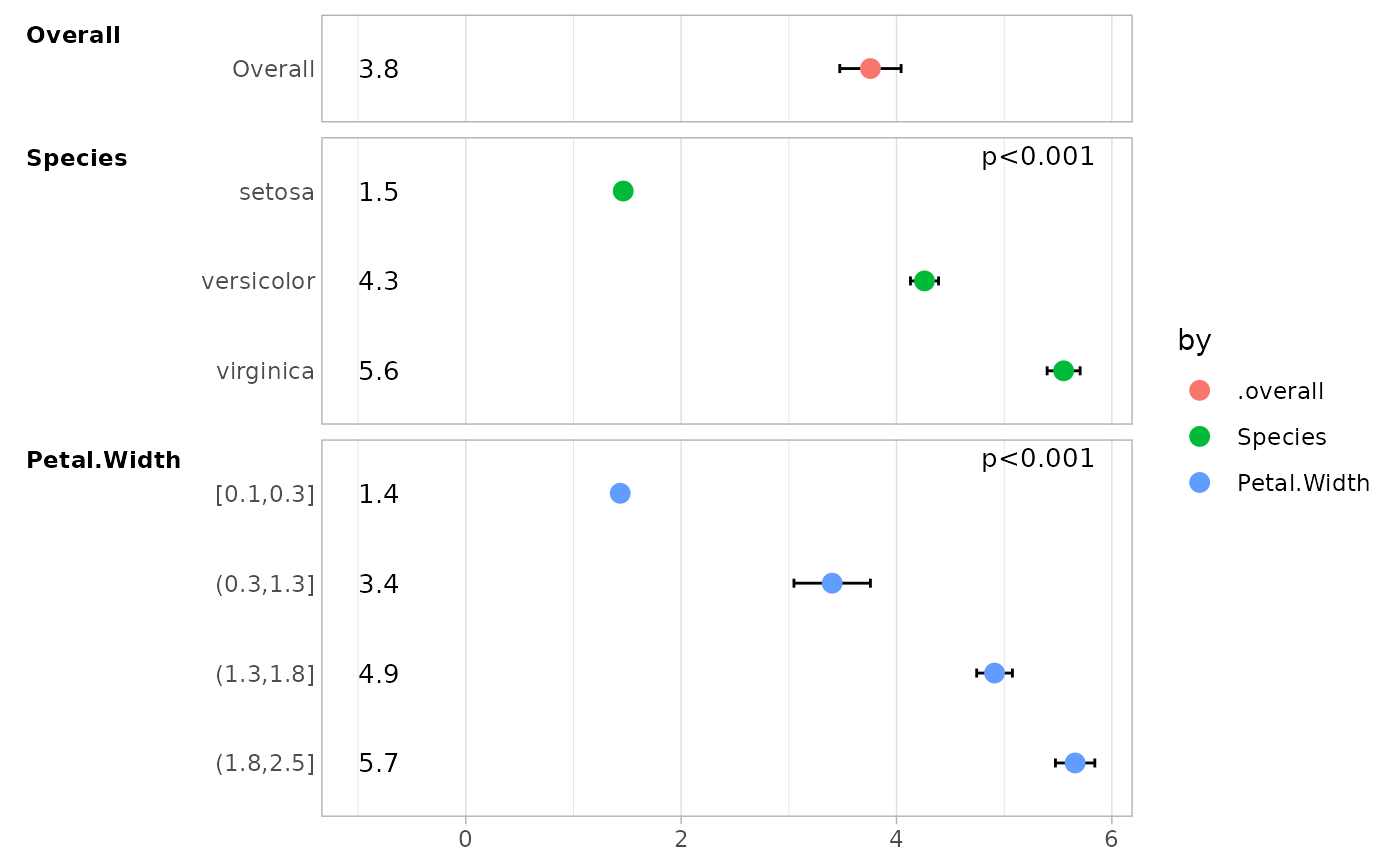

# works with survey object
iris |>
  srvyr::as_survey() |>
  plot_means(
    Petal.Length,
    by = c(Species, Petal.Width),
    label_y = -1,
    size = 3,
    mapping = ggplot2::aes(colour = by),
    flip = TRUE
  )

# }
